INSTALLATION
Smart Sensors
Installation
Smart Sensors
Installation Guidelines
- Ensure the smart sensor does not face a doorway or entrance.
TIP: Mount the sensor beside the door to avoid this issue - Ensure nothing will obstruct the view of the smart sensor (doors, tv mounts/stands etc).
- Point sensor towards the centre of the room, not an empty area.
- Smart Sensors can’t see through glass.
Required Equipment
Smart Sensor

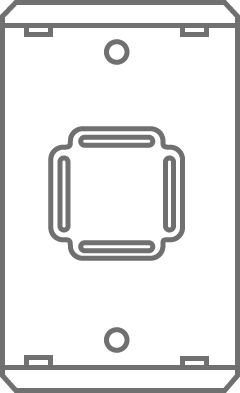

Sensor Mount
2 AAA Batteries (included)
- The smart sensor should be mounted 60″ to 80″ from finished floor.

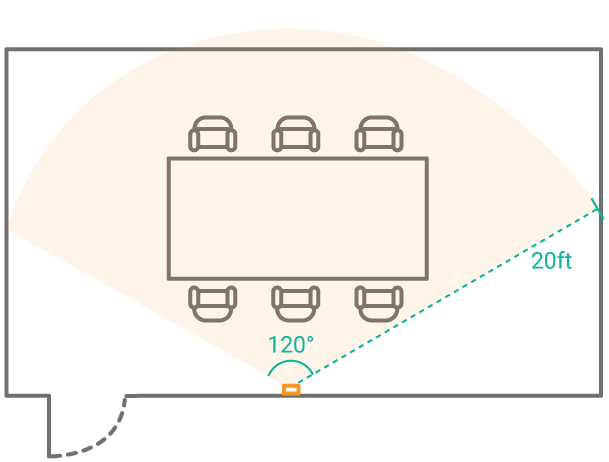

- The smart sensor has a field of view of 120° and approximately 20ft.
Follow the mounting instructions provided with the sensor.
